DIVA Donate - 3rd campaign completes

By Walodja1987 at

TL;DR: The third campaign concluded on 10 June 2024. No donation payment was triggered due to favorable vegetation conditions. All participants can claim back their contributions, totaling $8'632.60.

๐ŸŒ Outcome

The NDVI value as of 31 May 2024, used to assess vegetation and drought conditions at the onset of the dry season, was recorded at 0.72 on 10 June 2024, the time when the outcome reporting commenced. This value significantly exceeded the threshold value of 0.57, marking it as the second highest in recorded history. According to the predefined criteria for donation release payouts, no payout was triggered (the shift by 1 in the NDVI value is for technical reasons and does not affect the outcome).

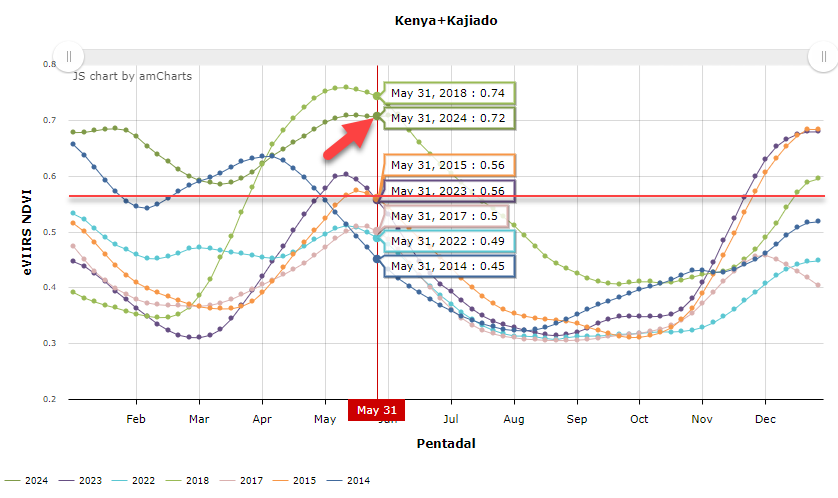

Below is a graphic that puts the outcome into historical context by comparing it to previous years that would have triggered a payout due to drought conditions (2014, 2015, 2017, 2022, 2023) according to the established payoff profile, alongside the maximum value recorded in 2018 (0.74).

Please note that due to the smoothing algorithm used by FEWS, past values may be revised retroactively. For instance, the NDVI value for May 31, 2024, was initially reported at 0.72 on June 10. It was later adjusted to 0.71 on June 12, and reduced further to 0.69 by June 23.

The outcome aligns with the assessments from Kenya's National Drought Management Authority (NDMA) detailed in their monthly reports for March, April, and May. An excerpt from the April report, the peak month of the "Long Rains" season, describes the conditions on the ground:

Due to continued enhanced rainfall during the month, water is adequately available. Open water sources are 90%-100% recharged, silted too due to floods; rivers overflowing to vicinity. They are expected to last for about four to five months. Vegetation condition above normal. Pasture and browse conditions are very good, but heavily flooded. Livestock body condition is very good. Milk production slightly above normal due to increased calving. No migration, but moved to higher grounds due to floods in some areas. No Livestock mortalities due to drought.

โœจ Contributions

A total of $8'632.60 was contributed to the campaign, with the majority consisting of Mercy Corps Ventures (MCV) funds rolled over from the previous campaign by the DIVA Donate team. Additionally, $70 was contributed by two external users from the DIVA Protocol community.

๐Ÿ”ฎ Outcome reporting via Tellor

The third campaign tested the use of the Tellor Oracle for outcome reporting. Tellor is a decentralized oracle system employing a network of reporters to relay off-chain data to the blockchain. Reporters are required to post a financial bond of approximately $10,000 prior to reporting, which may be forfeited in the event of inaccurate reporting, ensuring data accuracy and integrity. Crucially, using a decentralized oracle system eliminates the risk of a single point of failure, enhancing the system's resilience and reliability.

A comprehensive guide on how to source and report the NDVI value was published for Tellor reporters before campaign expiry.

The timeline of the outcome reporting related events is summarized below:

  • The campaign expired on 10 June 2024, at 06:00:00 PM UTC, opening a 7-day window for outcome reporting.
  • Just 16 minutes later, the NDVI value was reported by a Tellor reporter (tx link).
  • After remaining undisputed for 12 hours, a key requirement to ensure data accuracy, the value was confirmed and pushed to DIVA Protocol for settlement (tx link).

The reporting via Tellor Protocol went smoothly, eliminating the 14-hour delay experienced in the previous campaign due to suboptimal timing configuration in the oracle. Combined with Tellor's shorter 12-hour dispute period versus DIVA Protocol's conservative three-day period, this improvement significantly reduced the time for final value confirmation to 12 hours, down from 86 hours previously.

๐Ÿ† POAPs

As a token of appreciation, participants received a digital certificate (so-called POAP) to commemorate their contribution which can be viewed here. Donations of $75 or more received the golden-ring POAP. Smaller contributions were rewarded with the silver POAP.

๐Ÿ’ฐ Claim your funds

To reclaim your funds, navigate to and select "My Donations" from the top navigation menu. Click on "Claim Unfunded Amount" and confirm the transaction in your wallet.

The reclaimed MCV funds are earmarked for redeposit into the fourth campaign planned for October-November-December 2024. This third iteration of fund utilization underscores the magnified impact of every dollar contributed.

๐Ÿ’ก Key Learnings

This section summarizes the key takeaways from the third campaign.

Smooth reporting process via Tellor Oracle:

The integration of the Tellor Oracle improved final value confirmation times by over 80%, reducing disbursement delays in the event of a payout.

Carefully study new datasets before using them as trigger metrics:

The campaign utilized the publicly available, smoothed NDVI dataset from the USGS Famine Early Warning System Network (FEWS), which corrects for cloud coverage and atmospheric contamination. Post-launch, it was discovered that the datasetโ€™s smoothing algorithm retroactively adjusts historical observations. For example, the NDVI value for May 31, 2024, initially reported at 0.72 on June 10, subsequently dropped to 0.71 by June 12 and further to 0.69 by June 23.

To mitigate confusion and prevent costly disputes, we highlighted this fact in the Tellor reporting guide and provided additional instructions on which value to report, including a recommendation to document submissions through video recording. The recording from the Tellor reporter who submitted the NDVI value of 0.72 for the third campaign can be found here. For future campaigns utilizing the FEWS dataset, these details should be clarified in the reference asset specifications already.

This situation emphasizes the importance of fully understanding the dataset and clearly communicating the reporting requirements to avoid costly disputes.

Challenges in user onboarding:

Participation was limited to only two external users with a total amount of $70, primarily due to low marketing activities and the barrier of requiring web3 knowledge for participation. Moving forward, we will focus on forming partnerships with NGOs and securing grant funding to engage fewer, but more impactful, participants who can contribute more substantially in terms of dollar amounts to the campaigns. However, we want to emphasize that external users will still be able to participate in the campaigns.

Clarifying expectations for beneficiaries

Despite prior explanations about the conditional nature of the program, pastoralists onboarded for the campaign anticipated guaranteed payouts, mistaking the onboarding process for a pledge of funds at seasonโ€™s end. To prevent such misunderstandings, we plan to transition to group onboarding strategies. This method distributes funds to established groups representing the pastoralists, who then allocate the funds internally, simplifying the process for future campaigns by reducing the frequency of individual onboarding.

Add protection against flooding:

While rainfall is generally beneficial for vegetation, excessive rainfall, like that observed in April, can lead to flooding. To provide protection against excessive rainfall, the campaign payout could be structured to cover both scenarios โ€“ too little and too much rain. This dual-trigger strategy will be explored in future campaigns to better protect against the two extremes.

๐Ÿ” Transparency

While this article focuses on the outcomes and insights from our third campaign, it also presents an opportunity to underscore the transparent nature of the processes at DIVA Donate. Given the inherent transparency of blockchain technology, all details and transactions related to the campaign can be independently verified. Please note that some information may be encoded in a format that is not directly interpretable without specific knowledge or decoding tools (e.g., 1720000000000000000 corresponds to 1.72).

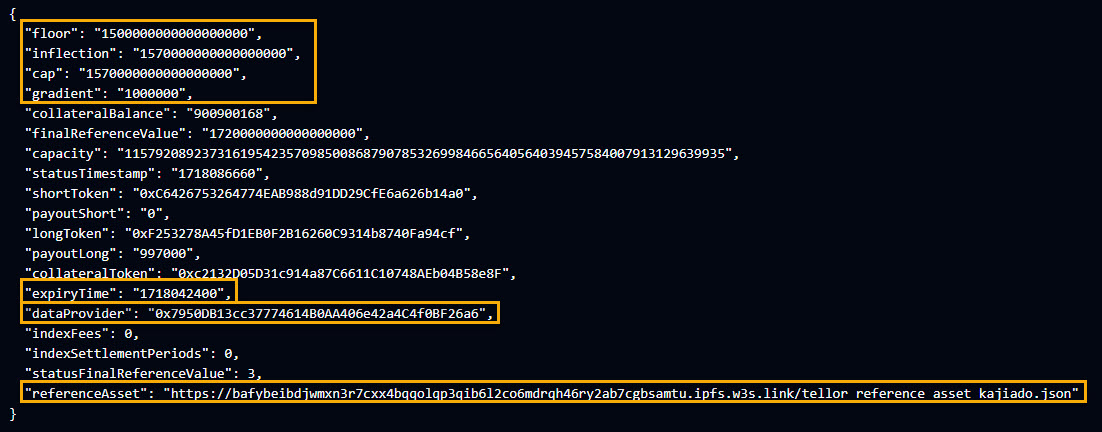

Campaign setup

The campaign parameters, including the reference asset, payout profile, data provider, and expiry time, are specified upfront and cannot be altered after campaign launch. These details are accessible on the blockchain explorer by following these steps:

  1. Navigate to Read,
  2. Select GetterFacet in the Choose Facet dropdown on the right,
  3. Expand getPoolParameters function,
  4. Enter the campaign identifier 0x8c85108a28a163d17222c2140eea57f9d1cb7f83f69dfc04eb0d9e51298dea2b6 into the _poolId field,
  5. Click the Query button. The parameters floor, inflection, cap, and gradient define the shape of the payoff curve. For interpretation of these parameters, consult the DIVA Protocol documentation.

Outcome reporting steps

The two transactions involved in the outcome reporting via the Tellor Oracle can be accessed here:

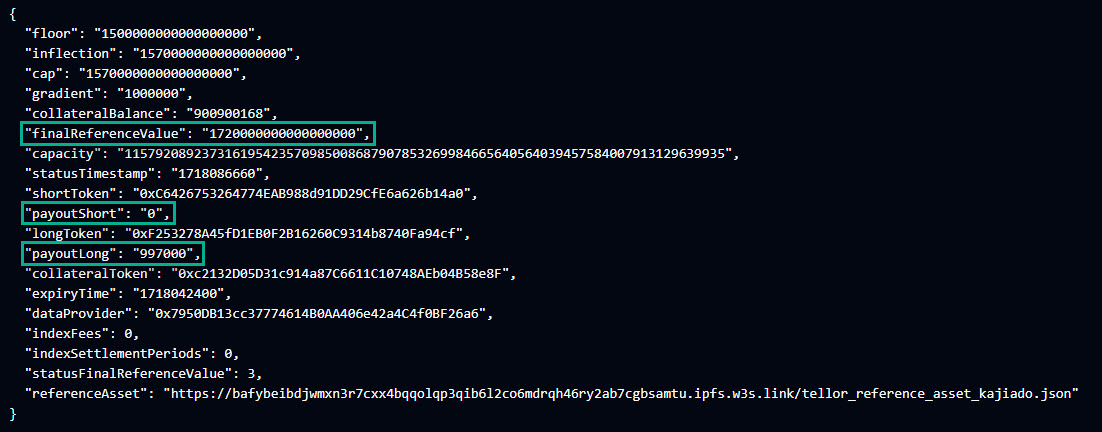

Reported outcome

The final value (finalReferenceValue) and the respective payouts for beneficiaries (payoutShort) and participants (payoutLong) can be verified in the same location as the campaign setup.


Details on all contributions, including contributing accounts, amounts, are available here (transactions labelled createContingentPool and addLiquidity).

Claim back

All claim back transactions following the campaign's expiry can be viewed in the same section as contributions (transactions labelled batchRedeemPositionToken).

๐ŸŒ” Conclusion

The successful completion of the third DIVA Donate campaign highlights our ongoing commitment to increasing the climate resilience of vulnerable communities through technology. By integrating the Tellor Oracle, we've significantly improved outcome reporting times and reliability. We look forward to leveraging these insights to refine future initiatives and effectively address extreme weather conditions. Thank you to all participants for your support and contribution towards making a meaningful difference in our target communities.

๐Ÿ€ About DIVA Donate

DIVA Donate is an innovative platform that leverages blockchain technology to enable parametric conditional donations. It is a joint initiative between two entities united around the mission of empowering vulnerable communities affected by climate change:

  1. Fortune Credit: a microfinance institution in Kenya which provides credit, insurance & other financial services to 50k+ customers including small-holder farmers & pastoralists, and
  2. DIVA Technologies AG: developer of DIVA Protocol, a smart contract-based system for creating and managing custom derivative contracts peer-to-peer.
